Gamma Sterilisation of Single-Use Mixing Systems & Single-Use Sampling Assemblies
An in-depth technical guide explaining how gamma sterilisation supports sterile, ready-to-use single-use mixing systems and sampling assemblies for pharmaceutical, biotechnology, vaccine and advanced therapy manufacturing.
20–25 Minutes
QA • Validation • OEMs • CDMOs
Biopharma • Vaccines • Cell Therapy
ISO 11137 • GMP
Why Single-Use Technologies Have Become the New Standard in Biopharmaceutical Manufacturing
Single-use technologies have transformed pharmaceutical manufacturing by replacing traditional stainless-steel equipment with sterile disposable assemblies that reduce contamination risk, eliminate cleaning validation and significantly improve manufacturing flexibility.
Modern production facilities now rely on complete disposable fluid paths consisting of mixing systems, sampling assemblies, tubing, manifolds, aseptic connectors, filters and bioprocess bags. These systems are supplied pre-assembled and terminally sterilised, allowing manufacturers to install them directly into production without additional sterilisation or cleaning.
The adoption of disposable technologies has accelerated across monoclonal antibody manufacturing, vaccine production, plasma fractionation, biologics, biosimilars and advanced cell & gene therapy, where contamination control and rapid product changeovers are critical.
Executive Insight
The greatest advantage of single-use systems is not simply replacing stainless steel—it is enabling manufacturers to operate fully closed, contamination-controlled processes with greater speed, flexibility and operational efficiency.
Understanding the Building Blocks of Modern Single-Use Manufacturing
Single-use systems are not individual products but integrated assemblies engineered to create sterile fluid pathways throughout pharmaceutical manufacturing.
Depending on the application, a complete system may include disposable mixing bags, tubing assemblies, aseptic connectors, disconnectors, manifolds, sterile filters, sampling assemblies, clamps, sensors and process containers.
Figure 1. Exploded view of a typical single-use bioprocess system illustrating how disposable mixing systems, tubing assemblies, manifolds, aseptic connectors, sterile filters and sampling assemblies integrate to form a complete sterile fluid pathway.
Mixing Systems
Preparation of buffers, media and pharmaceutical formulations.
Sampling Assemblies
Closed sterile sample collection throughout production.
Fluid Transfer
Tubing, manifolds and connectors for aseptic movement of process fluids.
Storage Systems
Bioprocess bags and sterile containers supporting production logistics.
Applications Across Modern Pharmaceutical Manufacturing
From vaccine production to advanced biologics, single-use technologies support contamination-controlled manufacturing throughout the pharmaceutical product lifecycle.
The flexibility of disposable systems allows manufacturers to reduce downtime, eliminate cleaning validation and rapidly switch between products while maintaining sterile processing environments.
| Application | Typical Single-Use Components | Primary Objective |
|---|---|---|
| Vaccine Manufacturing | Mixing Systems, Bags, Tubing | Sterile media preparation |
| Monoclonal Antibodies | Manifolds, Sampling Assemblies | Closed fluid transfer |
| Cell & Gene Therapy | Connectors, Bags, Sampling Systems | Maximum contamination control |
| Sterile Injectables | Tubing Assemblies, Filters | Aseptic filling support |
| Biologics Manufacturing | Complete Single-Use Systems | Flexible GMP production |
Why Gamma Sterilisation is the Preferred Technology for Single-Use Mixing Systems & Sampling Assemblies
Gamma sterilisation enables manufacturers to sterilise complete single-use assemblies after final assembly and packaging, delivering sterile, ready-to-use systems that integrate directly into pharmaceutical production.
Unlike surface sterilisation methods, gamma radiation penetrates sealed packaging and complex multi-component assemblies, allowing the entire fluid pathway—including bags, tubing, manifolds, connectors and sampling systems—to be sterilised in one validated process.
This capability has made gamma irradiation one of the most widely adopted terminal sterilisation technologies for disposable pharmaceutical systems used across the global biopharmaceutical industry.
Why It Matters
Every sterile disposable assembly ultimately depends on one objective: delivering a validated, contamination-controlled product that is ready for immediate use inside a GMP manufacturing environment. Gamma sterilisation makes that possible.
The Complete Gamma Sterilisation Workflow for Single-Use Systems
Gamma sterilisation is far more than exposing products to radiation. It is a validated manufacturing process involving engineering, microbiology, dosimetry and quality assurance to ensure every single-use assembly consistently achieves the required sterility level.
Each stage contributes to maintaining product integrity while ensuring the final assembly is sterile, traceable and ready for pharmaceutical manufacturing.

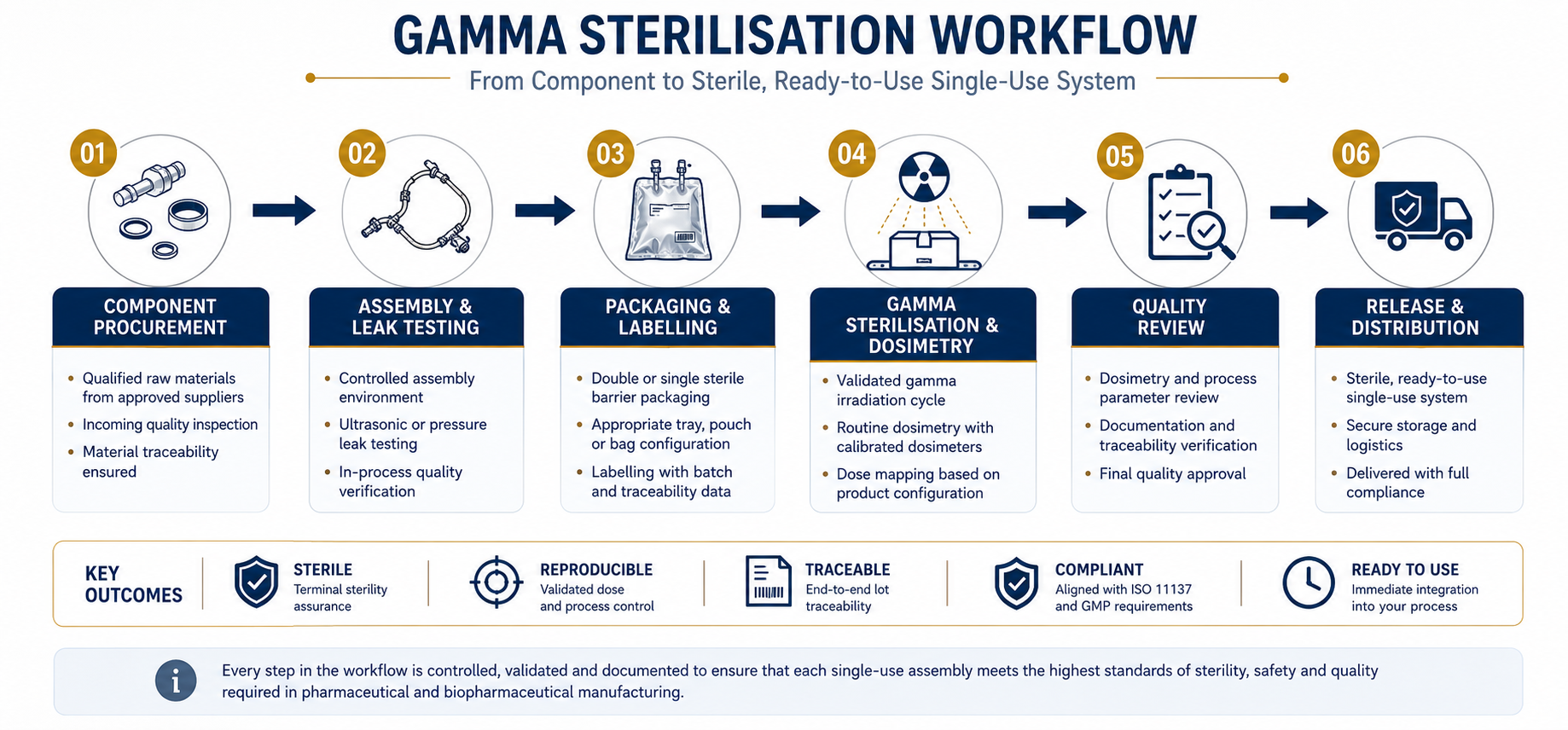

Figure 2. The complete gamma sterilisation workflow for single-use systems—from component procurement and assembly to validated irradiation, dosimetry, quality assurance and release for pharmaceutical manufacturing.
01
Component Procurement
02
Assembly & Leak Testing
03
Packaging & Labelling
04
Gamma Sterilisation & Dosimetry
05
Quality Review
06
Release & Distribution
Technical Note
Gamma sterilisation is validated on the complete packaged assembly rather than individual components. Product configuration, packaging density and geometry all influence dose distribution and therefore form part of the validation process.
Material Selection Plays a Critical Role in Gamma Sterilisation
Single-use systems consist of multiple polymers, elastomers and engineered plastics. Selecting materials that remain suitable after gamma sterilisation is essential for maintaining mechanical performance and process reliability.
Manufacturers typically evaluate radiation compatibility together with extractables, leachables, flexibility, weldability and chemical resistance during product development.

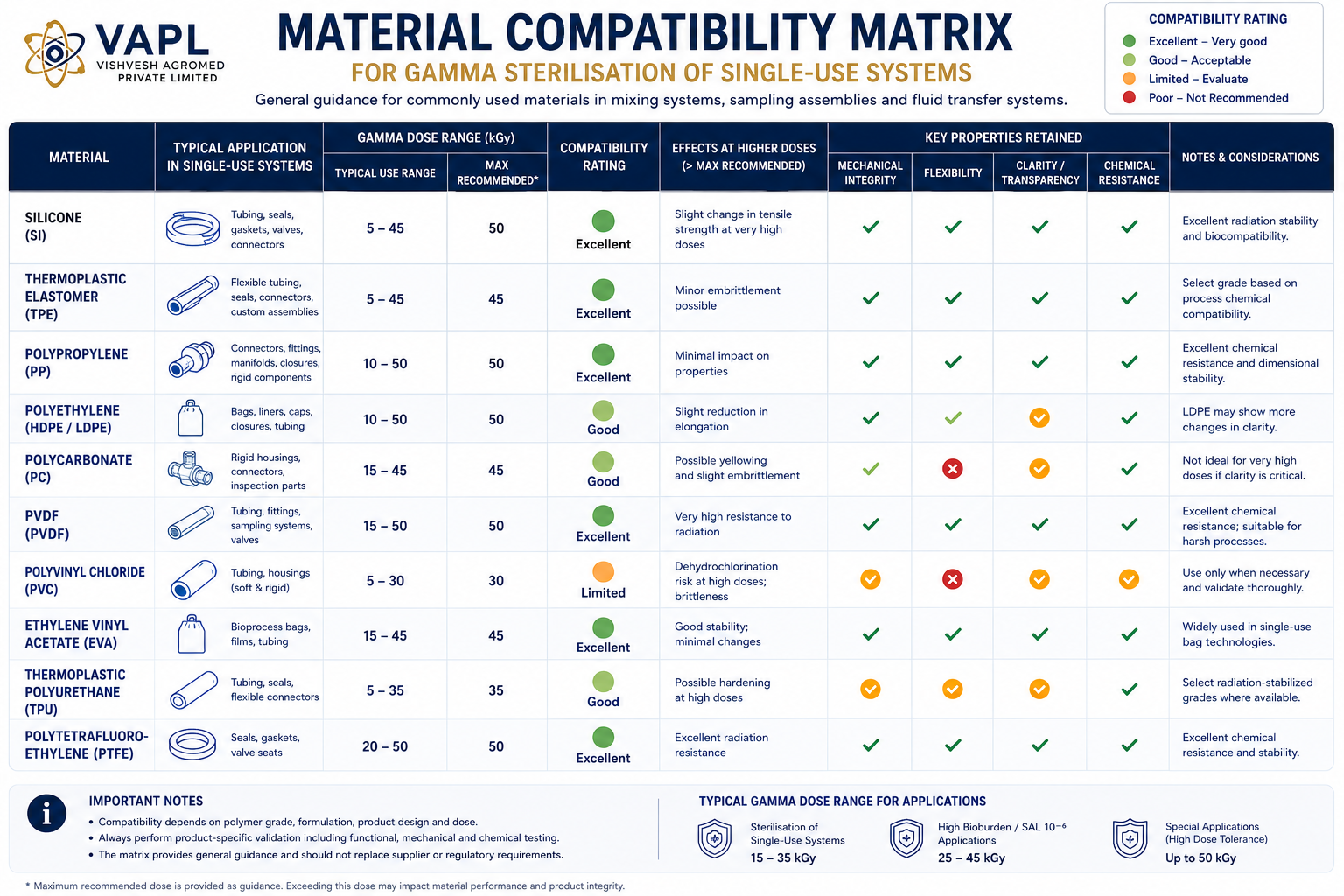

Figure 3. Material compatibility matrix illustrating the performance of commonly used polymers during gamma sterilisation of single-use pharmaceutical and biopharmaceutical systems.
| Material | Typical Application | Gamma Compatibility |
|---|---|---|
| Silicone | Tubing | Excellent |
| TPE | Flexible Tubing | Excellent |
| Polypropylene | Connectors & Fittings | Excellent |
| Polycarbonate | Rigid Components | Good |
| PVDF | Specialty Fluid Components | Excellent |
| HDPE | Caps & Accessories | Good |
| EVA | Single-Use Bags | Excellent |
| PVC* | Selected Tubing Applications | Application Dependent |
*Material suitability depends on the specific formulation, radiation dose and intended end use. Product-specific validation should always be performed.
Validation Demonstrates That Sterility Can Be Achieved Consistently and Reproducibly
Gamma sterilisation is supported by internationally recognised validation practices that establish the appropriate sterilisation dose, verify dose distribution and confirm routine process consistency.
Rather than relying on irradiation alone, manufacturers combine microbiological evaluation, dose establishment, dosimetry, packaging qualification and routine monitoring into one validated quality system.

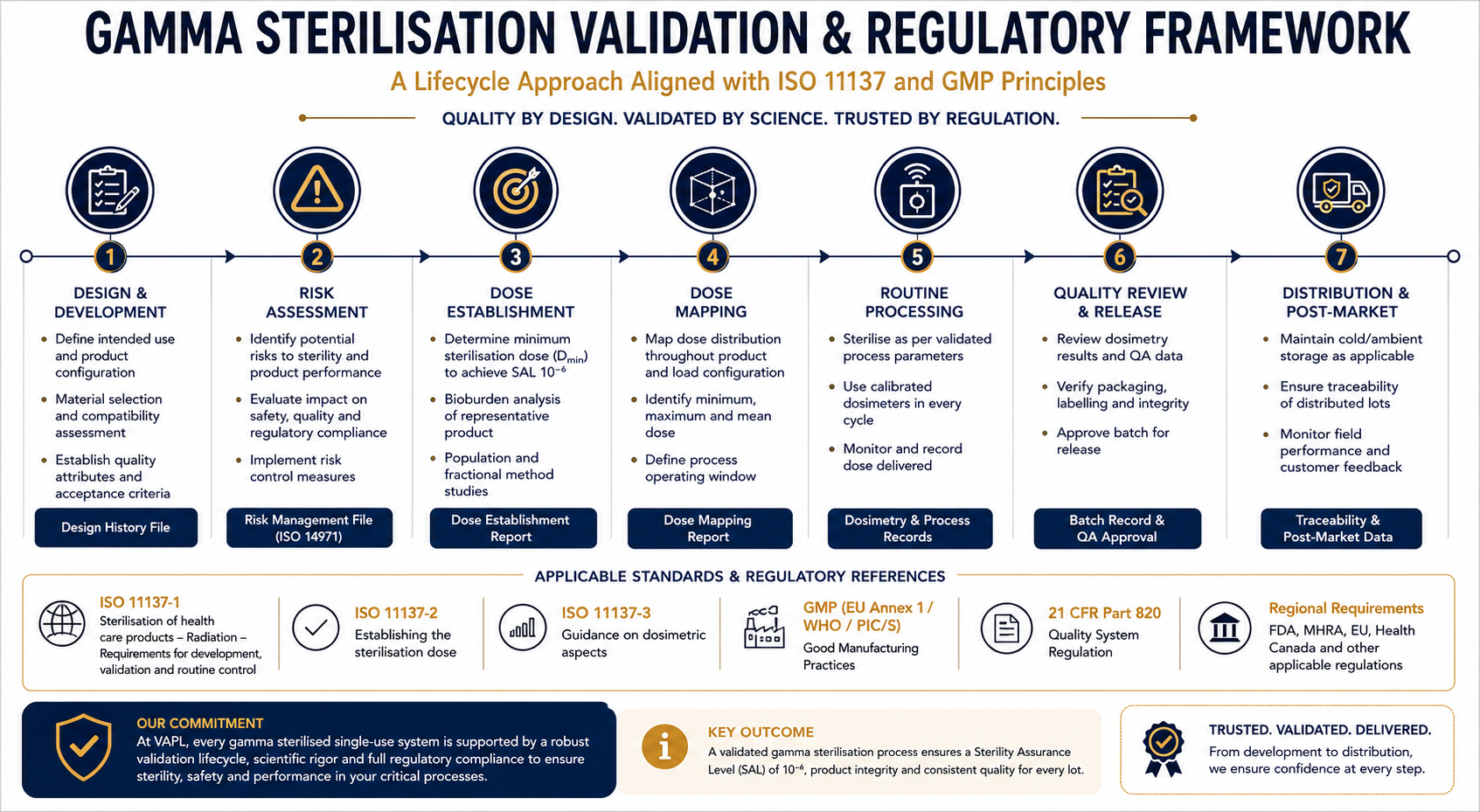

Figure 4. Validation lifecycle and regulatory framework illustrating how design, risk assessment, dose establishment, dose mapping, routine dosimetry and quality assurance work together to support compliant gamma sterilisation of single-use pharmaceutical systems.
Design
Product configuration and material selection.
Risk Assessment
Identify potential quality and sterility risks.
Dose Establishment
Determine the validated sterilisation dose.
Dose Mapping
Verify dose distribution throughout the product load.
Routine Dosimetry
Monitor every production cycle.
Product Release
Quality review and batch approval.
Key Standards
Manufacturers commonly align sterilisation validation with ISO 11137 while integrating broader pharmaceutical quality systems such as GMP and product-specific regulatory requirements.
A Simple Decision Framework for Single-Use Pharmaceutical Systems
Selecting the appropriate sterilisation technology depends on product design, intended application, packaging configuration and regulatory requirements. The following decision framework provides a simplified starting point for evaluation.

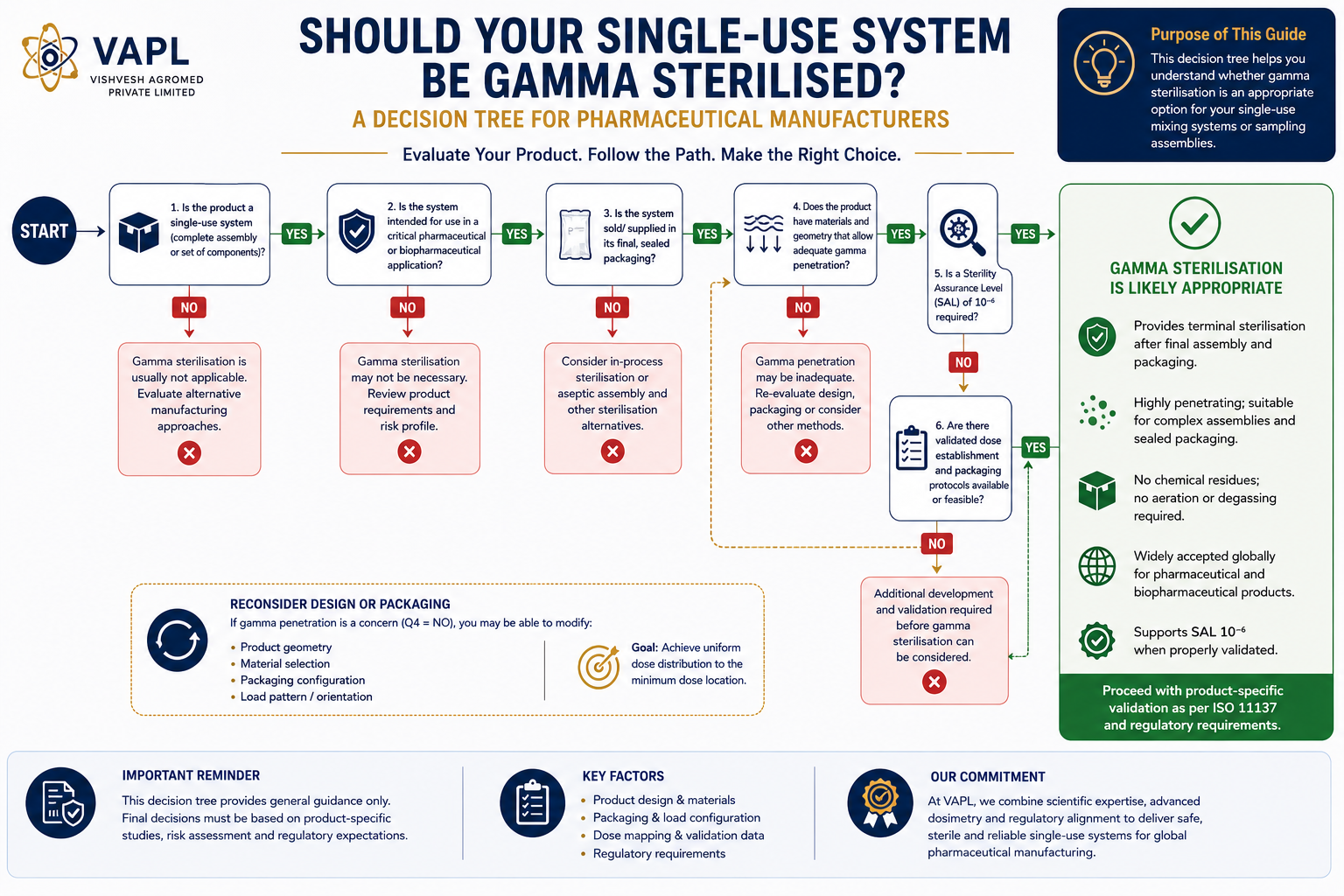

Figure 5. Decision tree illustrating the key considerations for selecting gamma sterilisation for single-use pharmaceutical systems, including product configuration, terminal sterilisation requirements and validation strategy.
General Guidance
If a single-use assembly is supplied sterile, contains multiple interconnected components, requires terminal sterilisation after final packaging and will be used in contamination-controlled pharmaceutical manufacturing, gamma sterilisation is commonly evaluated as a suitable technology within the overall product validation strategy.
Common Mistakes When Planning Gamma Sterilisation of Single-Use Systems
Successful gamma sterilisation depends on much more than selecting a sterilisation dose. Product design, packaging configuration, validation strategy and material selection all contribute to consistent and compliant processing.
Ignoring Packaging Geometry
Packaging density and product orientation directly influence dose distribution.
Skipping Dose Mapping
Routine processing should always be supported by validated dose mapping studies.
Assuming All Materials Behave the Same
Different polymers respond differently to radiation and require product-specific evaluation.
Incomplete Validation
Validation should address the complete packaged assembly rather than individual components alone.
Ignoring Extractables & Leachables
Material compatibility assessments should consider the intended pharmaceutical application.
Poor Documentation
Comprehensive records support traceability, quality assurance and regulatory confidence.
How Gamma Sterilisation Supports Modern Biopharmaceutical Manufacturing
Case Study 01
Application: Vaccine Manufacturing
A manufacturer adopted gamma-sterilised single-use mixing systems to eliminate cleaning validation between production campaigns, reducing turnaround time while maintaining contamination-controlled processing.
Case Study 02
Application: Monoclonal Antibody Production
Disposable sampling assemblies enabled sterile in-process sampling without opening the production system, supporting product integrity throughout manufacturing.
Case Study 03
Application: Cell & Gene Therapy
Integrated tubing, bags and manifolds were supplied as gamma-sterilised assemblies, simplifying installation and supporting flexible GMP manufacturing.
Answers to Common Questions About Gamma Sterilisation of Single-Use Systems
Why are single-use systems gamma sterilised?
Gamma sterilisation enables complete assemblies to be terminally sterilised after final packaging, delivering sterile, ready-to-use products.
Can complete assemblies be sterilised?
Yes. Mixing systems, tubing, manifolds, connectors, sampling assemblies and bioprocess bags can be processed as complete packaged systems following validated procedures.
Does gamma radiation penetrate sealed packaging?
Yes. Gamma radiation is highly penetrating, allowing sterilisation of packaged multi-component assemblies.
Is every polymer suitable for gamma sterilisation?
No. Material compatibility depends on polymer type, intended application and validated sterilisation conditions.
Why is validation important?
Validation demonstrates that the sterilisation process consistently achieves the intended outcome while maintaining product performance.
What You Should Remember
Five Key Messages
✓ Single-use systems have become essential to modern pharmaceutical manufacturing.
✓ Gamma sterilisation enables terminal sterilisation after final assembly and packaging.
✓ Material compatibility and validation are fundamental to successful radiation processing.
✓ Proper dose mapping, dosimetry and documentation support consistent product quality.
✓ Sterile, ready-to-use assemblies improve manufacturing flexibility while reducing contamination risk.
